Introduction
| High speed double thread chain sewing machine |
Features
| 1. It adopts a single straight needle and a single curved needle to form a circle structure. The stitch is elastic, the structure is tight, the speed is high, and the performance is stable. |
| 2. The main transmission parts are driven by needle roller bearings and ball bearings, which are smooth and durable. |
| 3. Good sealing and no oil leakage. |
| 4. It is suitable for cutting edges of middle and high-grade gloves, saving manual angle cutting. |
| 5. According to the thickness of the sewing fabric, the teeth can be replaced with coarse teeth or fine teeth to ensure smooth feeding. |
| 6. No needle skipping, no floating line, no thread skipping. |
Technical data
| Product Name: High Speed Single Needle Double Thread Chain Sewing Machine (Glove Machine) |
| Stitch length: 3.5mm |
| Presser foot lift height: 5mm |
| Needle bar stroke: 23.6mm |
| Fuel delivery method: automatic fuel injection |
| Maximum sewing thickness: 3.2mm |
| Needle model: 81*1 type |

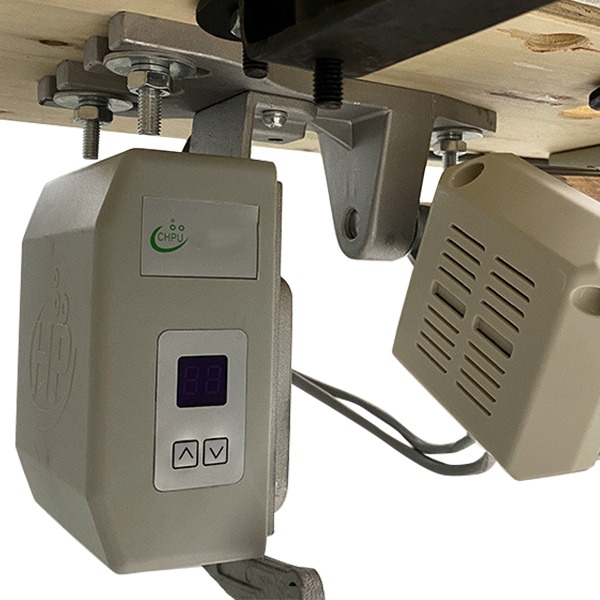

| Needle power: with 550W energy-saving speed regulating motor |
| Machine speed: 4200 rpm max |
| Application: sewing equipment |
| Degree of automation: fully automatic |
| Applicable thickness range: thick material machine |
| Stitch Type: Quilting Machine |
| Object: fabric |
| Drive form: electric |
| Number of needles: single needle |
| Number of lines: double line |
| Dimensions (L*W*H): 120*55*110(mm) |
| Overall weight: 20 (Kg) |

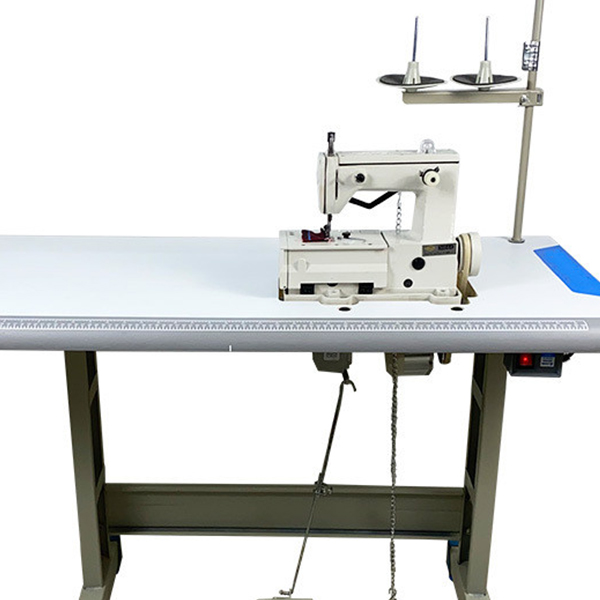

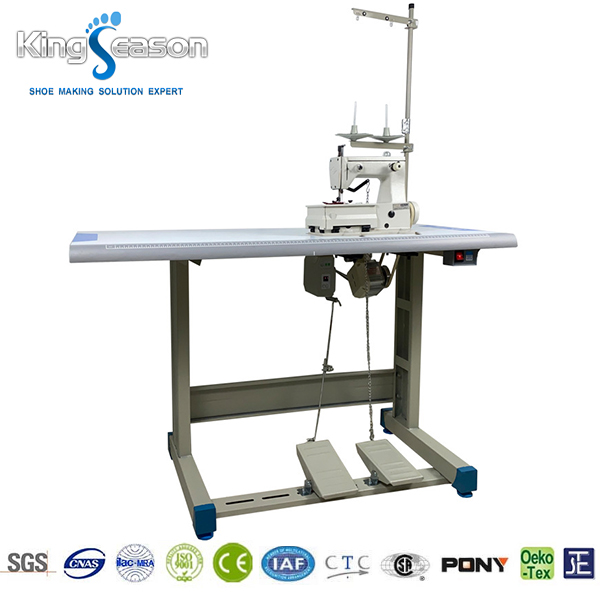

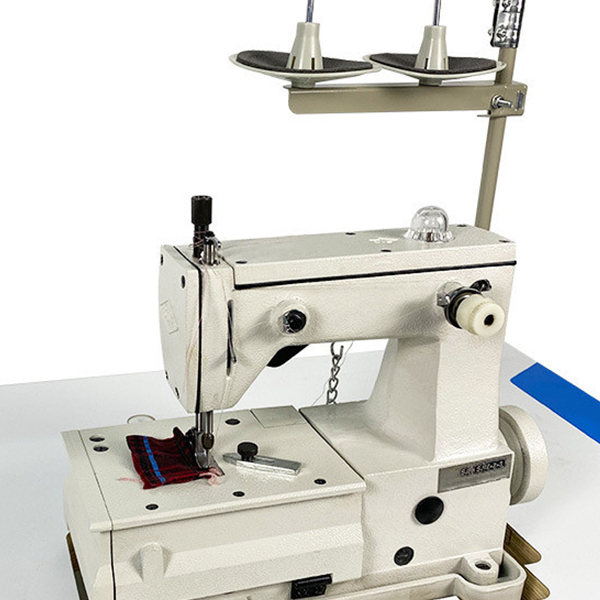

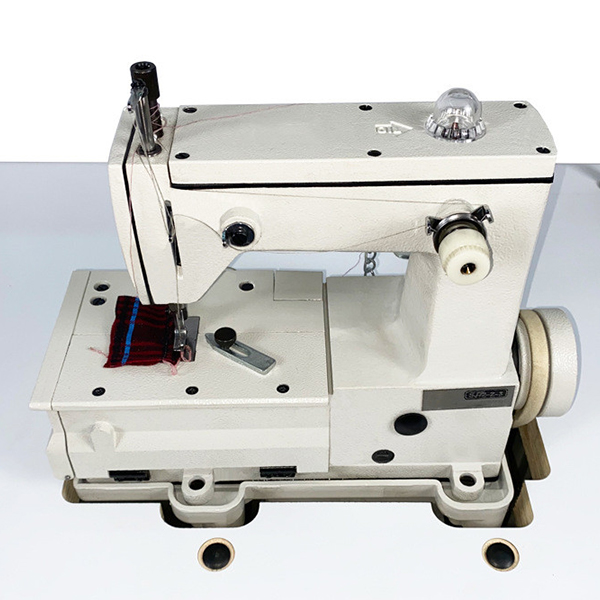

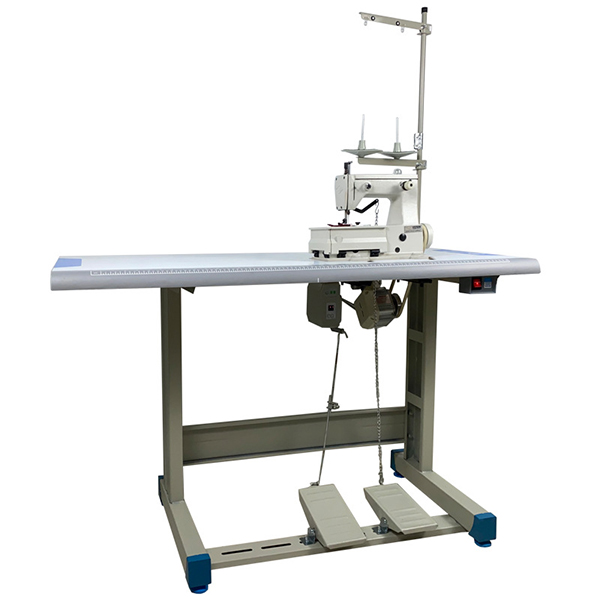

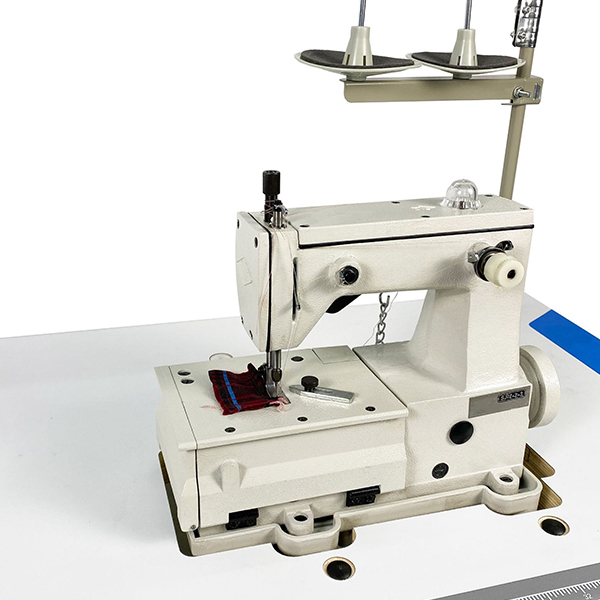

Product picture
