Project Description
Product List: Shoe Machine Shoe Mould Shoe Accessories

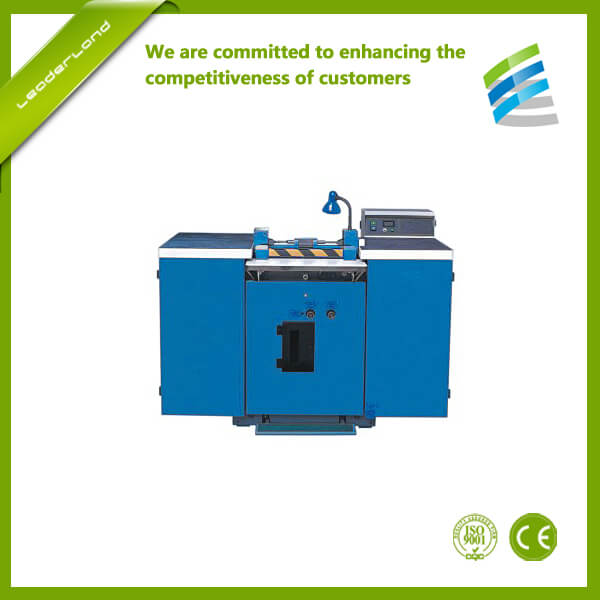

KS02.01 – SPLITTING MACHINES
Machines that equalize the thickness of the shoe upper leathers removing material from the flesh side. It can operate edge skiving by means of templates, to be made following a defined geometry. Average working width between 400 and 600 mm.
- Splitting thickness displayed by plc LCD, the infinitely variable adjustment of feeding, accurate number counting function.
- With automatic feed registration device, no need to adjust cutting tool.
- Automatic pause system when leather material entangles in and automatic detection system of electronic phase.
- Freestanding set of dust absorbing and knife grinding dust absorbing device.
- The accurate rail makes the movement of flying wheel more reliable, and the replacement of band knife more easily and conveniently.
The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 420mm and the thickness is less than 8mm, according to the required thickness in the industry of leather products. It can adjust the splitting thickness freely, improve the quality of products and strengthen the competitiveness of markets.
| Max width of split: | 420mm |
| Max thickness of split | 88mm |
| Min thickness of split | 0.15mm with top bar |
| Specification of band knife | 3570*50*0.6mm |
| Packge size | 1790*1130*1500mm |
| Gross weight / Net weight | 810kg/720kg |
