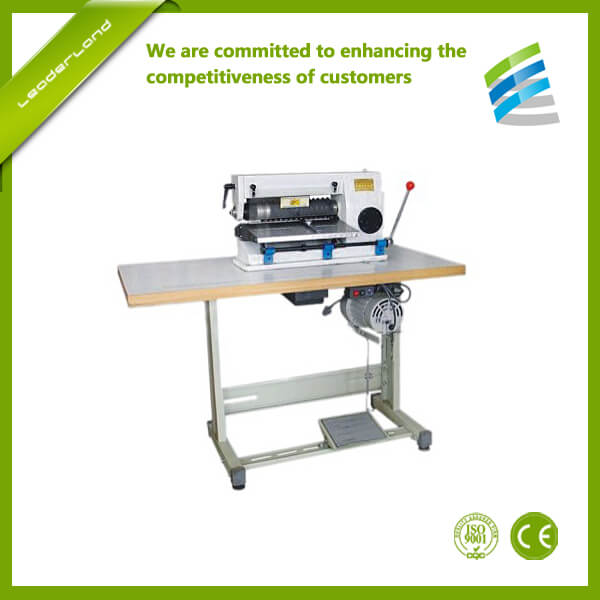

KS02.03 – SKIVING MACHINES
Machine which reduces the thickness of the leather on the parts that constitute the shoe upper in accordance to the requirements of the shoe model. The bevel or “bevelling” edge is made by cup-shaped knives that rotate at high speed and with preset inclination. The operation can be hand-operating or by templates. Traditional or computerized versions are available.
The skiving machine is suited for edge-skiving and whole surface skiving of many kinds of leather as well as synthetic leather and rubber for shoes, caps, bags, garments, and sports good etc.It is one of necessary equipment which makes above good. It is low noise, easy operation high productivity and long lifespan etc.
| Model | KS-1 |
| Knife speed | 1270(rpm) |
| Feed wheel speed | 62 99 132(rpm) |
| Knife size | φ1108*φ114*54mm |
| Knife axial displacement | 30mm |
| skiving width | 10-50mm |
| N.W | 40kg |
| G.W | 45kg |
| Motor | 220-370w |
| Dimension | 630*480*410mm |
