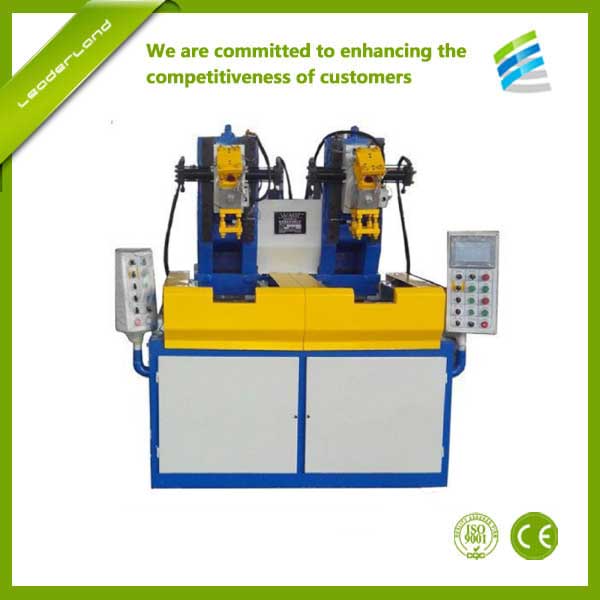

KS07.03 – RUBBER INJECTION MACHINES

This is the latest round of the launch of the new machine, pressure LAST redesign, design die force of 12 tons , early machines only 8 tons, this structure is complete and DESMA automatically turn to the last, more stable shoe last, an increase of accumulator means to conserve power and extend the life of the oil pump .
Mechanical strength on the basis of the original strengthened further enhance reliability.
The quality of the finished shoes are protected.

1. Driven by hydraulic pressure. Can work in manual state and in automation.
2. In order to reduce energy consumption, energy accumulator is used to guarantee the pressure in the hydraulic system, with saving energy about 30%.
3. Last, bottom core and side mold heated, temperature controlled and displayed all separately.
4. Automatically turn over last by hydraulic pressure（one mold with 2 lasts）. Bottom core can go up and down and it can buckle tightly and automatically.
5. Adopt parallel double joined boarding clamp mold framework, which is driven directly by double cylinder.
6. The customer requirements pressure LAST . And DESMA Equipment institutions.
7. One set of this machine’s mechanism, hydraulic system and electric parts are all closed in an entirety, so very convenient to adjust and install.
8. One mold has two lasts. When one last works in sulfuration, the other one can prepare uppers for higher efficiency.
9. For mold’s adjustment and installation，manual buttons can rotate last, press last, clamp mold and make bottom core up and down.
10. The molds of our machines are interchangeable with DESMA’s.
